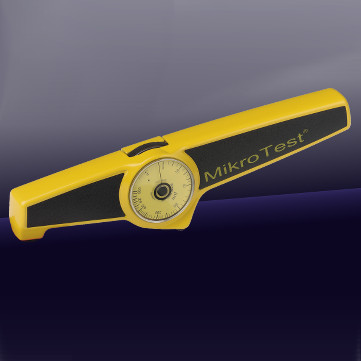

MikroTest from Elektrophysik is an extremely robust coating thickness gauge, which measures the thickness of non-magnetic coatings on steel substrates on the magnetic attraction principle.

The special models of the MikroTest Ni series measure the thickness of electroplated nickel coatings on steel (MikroTest NiFe 50) and on non-ferromagnetic substrates (MikroTest Ni 50 und Ni 100).

The MikroTest is resistant to solvents and made extremely durable by the metal housing.

The magnets owe their long-lasting durability to the unique ElektroPhysik manufacturing process, which also makes them remain within the tolerance values for decades.

Specifications

Property Value
Range 6 S3:0.2 mm – 3 mm
6 S5:0.5 mm – 5 mm
6 S10:2.5 mm – 10 mm
6 NiFe50:0 µm – 50 µm
Application 6 S3; 6 S5; 6 S10
Enamel, plastic, rubber on steel*.
6 NiFe50
Electroplated nickel on steel*.
*Steel: ST 33 to ST 60
Tolerance 6 S3:± 5 % – of reading
6 S5:± 5 % – of reading
6 S10:± 5 % – of reading
6 NiFe50:± 2 µm
6 NiFe50:+ 8 % – of reading
Minimum surface 6 S3:Ø 30 mm
6 S5:Ø 50 mm
6 S10:Ø 50 mm
6 NiFe50:Ø 20 mm
Minimum curvature radius 6 S3:15 mm – convex
6 S3:25 mm – concave
6 S5:15 mm – convex
6 S5:25 mm – concave
6 S10:15 mm – convex
6 S10:25 mm – concave
6 NiFe50:10 mm – convex
6 NiFe50:25 mm – concave
Minimum base thickness 6 S3:1.0 mm
6 S5:1.0 mm
6 S10:2.0 mm
6 NiFe50:0.5 mm
Ambient temperature -20 °C – 100 °C
Dimensions and weight Dimensions:
Gauge 215 mm x 55 mm x 29 mm ·
Plastic carrying case 235 mm x 185 mm x 46 mm ·
Weight:
Case incl. gauge approx. 560 g
